DWG-014 · MODULAR LIGHTING · RISD 2024
Interchangeable Patterned Lamp
Three removable acrylic pattern systems reshape one color-adjustable light source through modular assembly.
FIG 01 · PINK LIGHT STATE
SEC 01
Brief概要
ONE LIGHT SOURCE, THREE PHYSICAL PATTERNS
How can one industrial lamp create several spatial identities without replacing its light source?
One color-adjustable bulb remains at the center while three removable pattern assemblies change the lamp’s silhouette and color behavior. Each pattern is built from differently shaped and colored acrylic slices; the third translates the fluidity of moving water into a layered form. The whole lamp is designed to come apart, with locating and assembly features preserved in the 3D model.
COURSEEFS DESIGN
FOCUSPATTERN · COLOR
BUILDACRYLIC · METAL
OUTPUT3 REMOVABLE SETS
SEC 02
Color Interaction Study色彩观察
A SEPARATE EXPERIMENT BECAME THE COLOR STRATEGY
The same colored acrylic can appear different when the illumination color changes.
FIG 02 and FIG 03 come from another project, not from this lamp. They document the observation that a colored acrylic sheet has no single fixed appearance under colored light. That finding led to the lamp’s central play: combine inherently colored acrylic with a color-adjustable bulb.

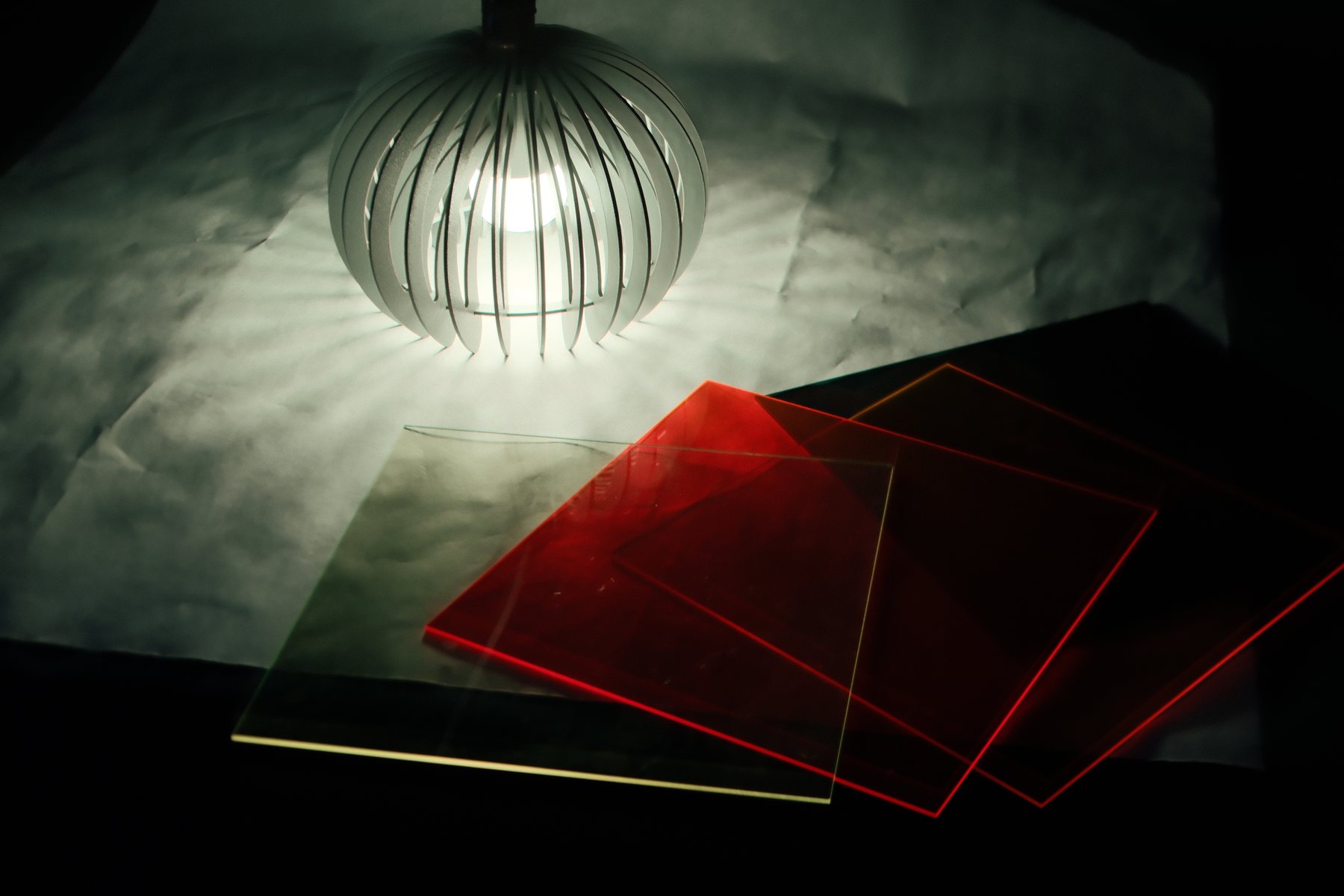

FIG 02 · SEPARATE STUDY

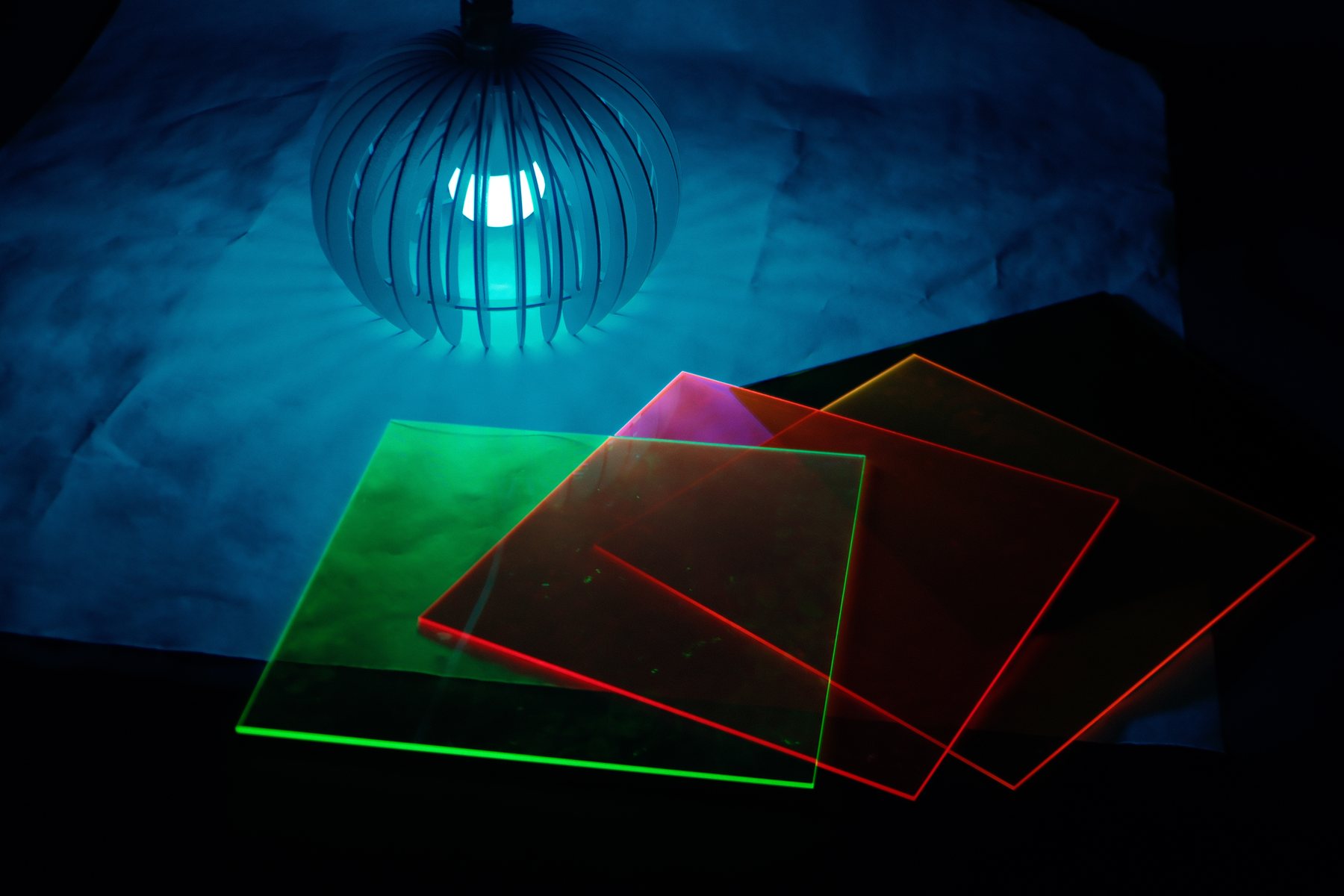

FIG 03 · SEPARATE STUDY
SEC 03
Three Pattern Sets三套纹样
SHAPE AND MATERIAL COLOR CHANGE; THE BULB DOES NOT
Three removable acrylic assemblies give the same lamp three distinct pattern languages.
Each set combines its own slice geometry with a different palette of colored acrylic. Pattern 03 develops a fluid profile that references moving water, while the shared rods and frame register every assembly around the same bulb.
PATTERN 01SHAPED SLICE SET
PATTERN 02ALTERNATE COLOR + FORM
PATTERN 03FLOWING-WATER PROFILE

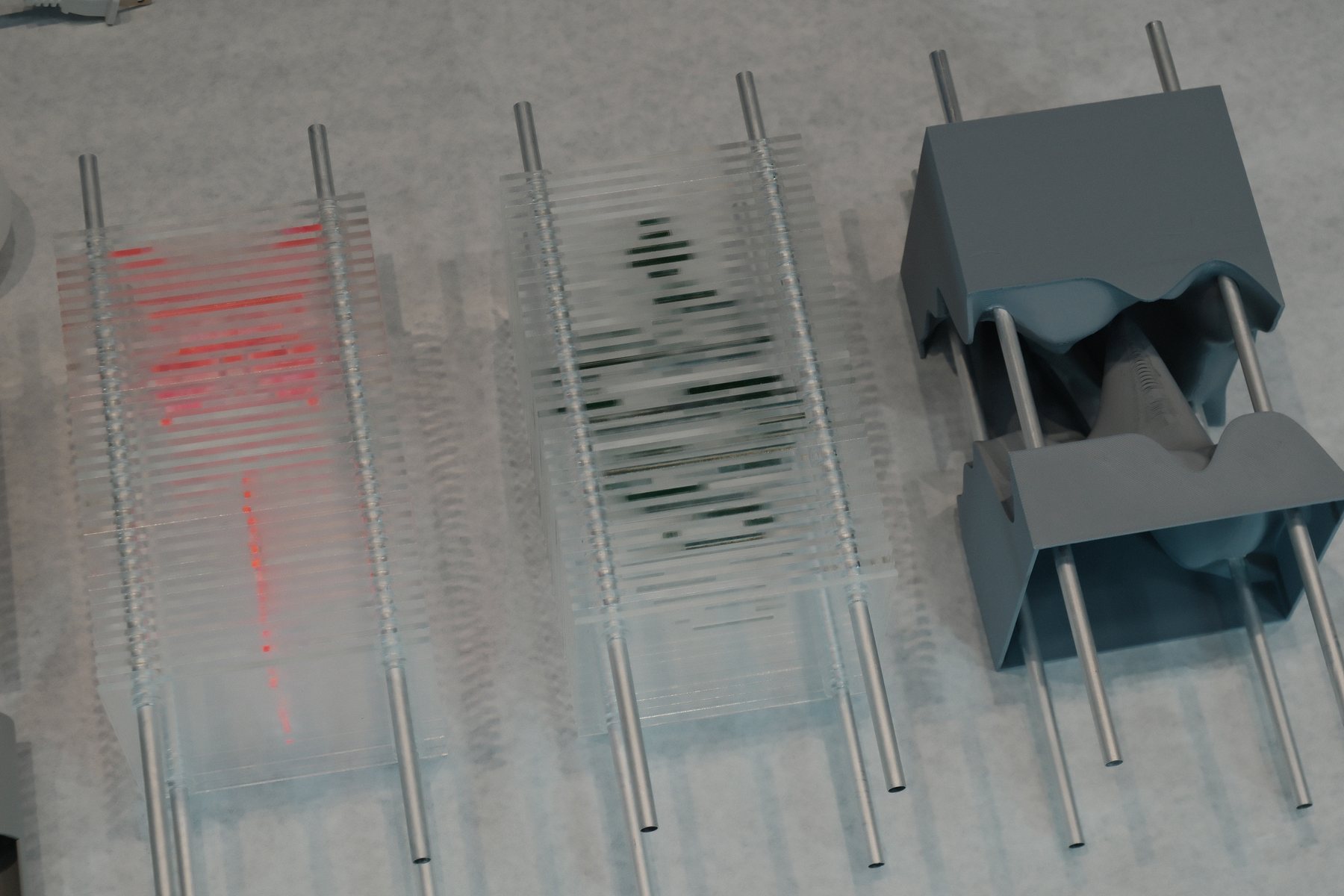

FIG 04 · THREE SETS
SEC 04
Pattern + Light Play纹样与光
ONE BULB ACTIVATES MULTIPLE MATERIAL READINGS
Changing the light color shifts how the acrylic layers mix, overlap, and read in space.
The open state exposes the interchangeable construction and the unobstructed light path. Once assembled, the acrylic slices carry material color while the adjustable bulb adds a second color variable, producing new gradients and depth cues without replacing the light source.

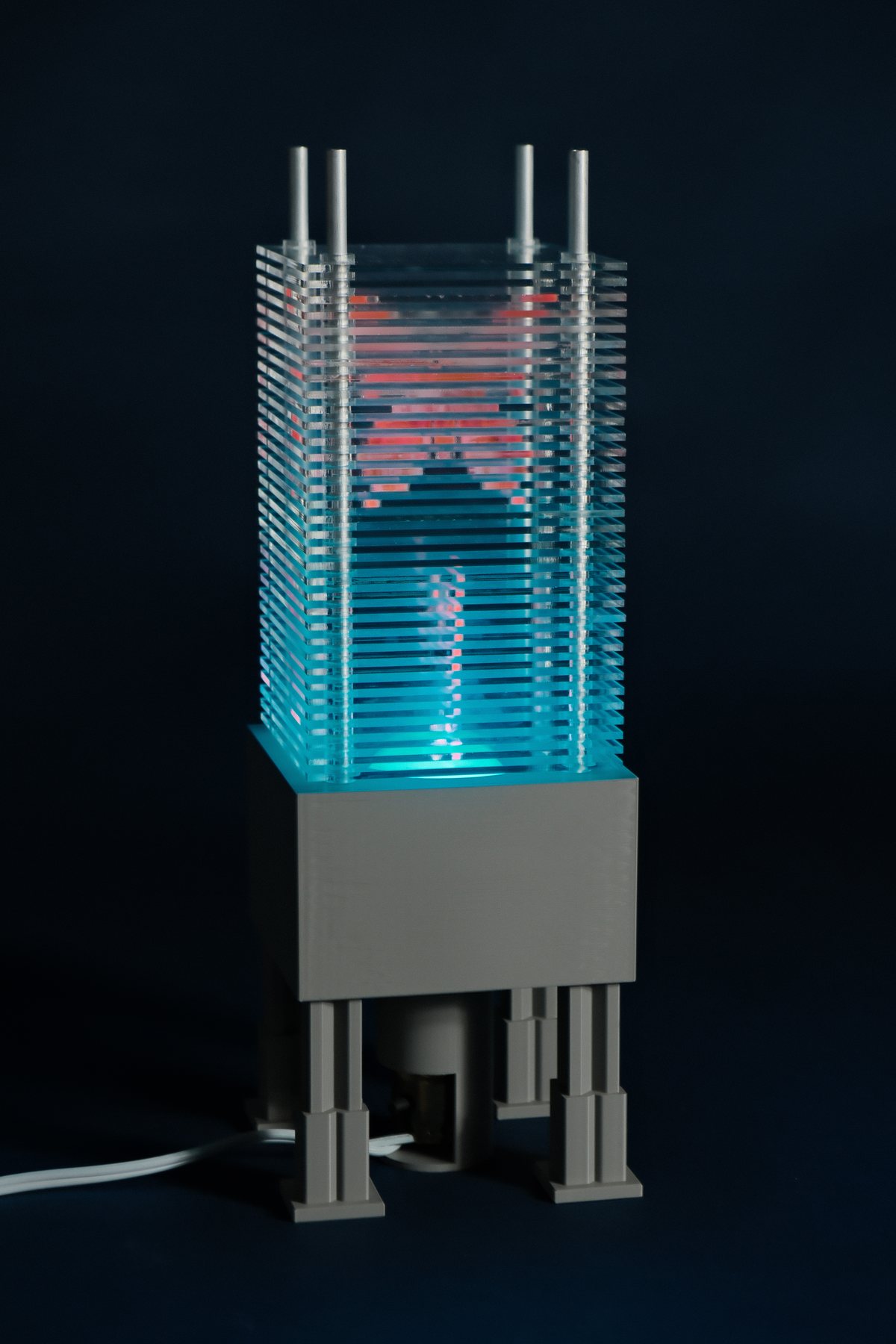

FIG 05 · MIXED

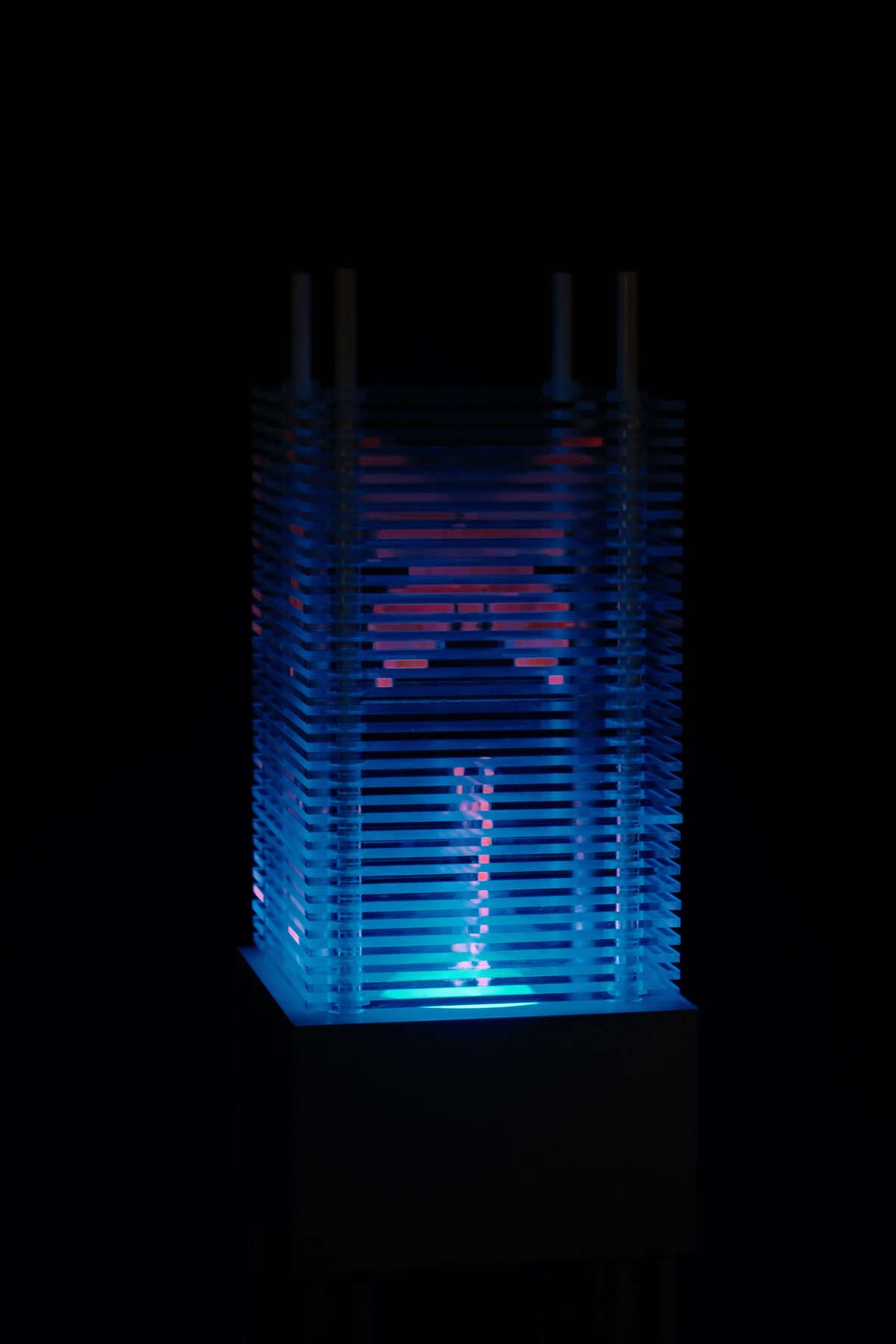

FIG 06 · CYAN

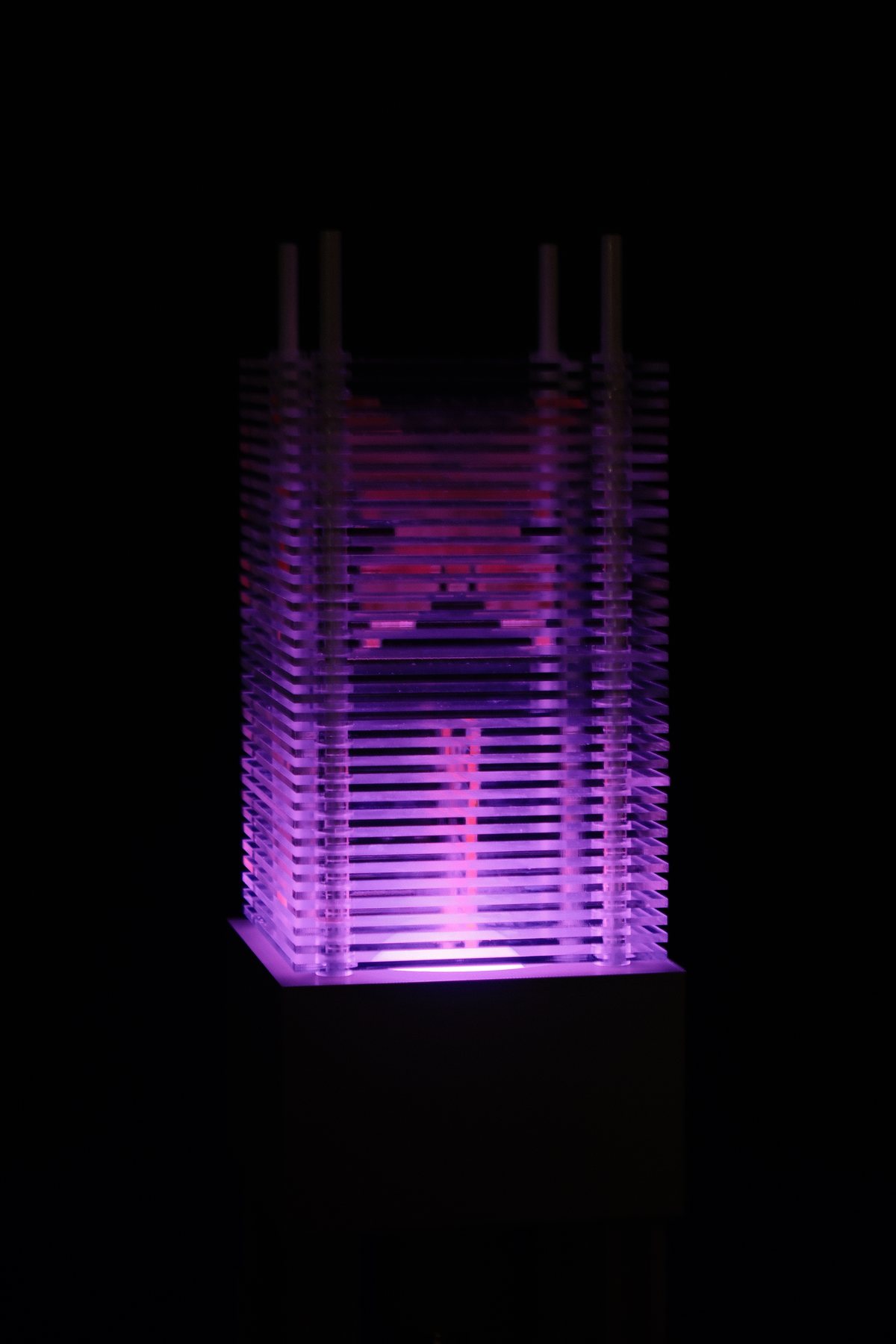

FIG 07 · PINK

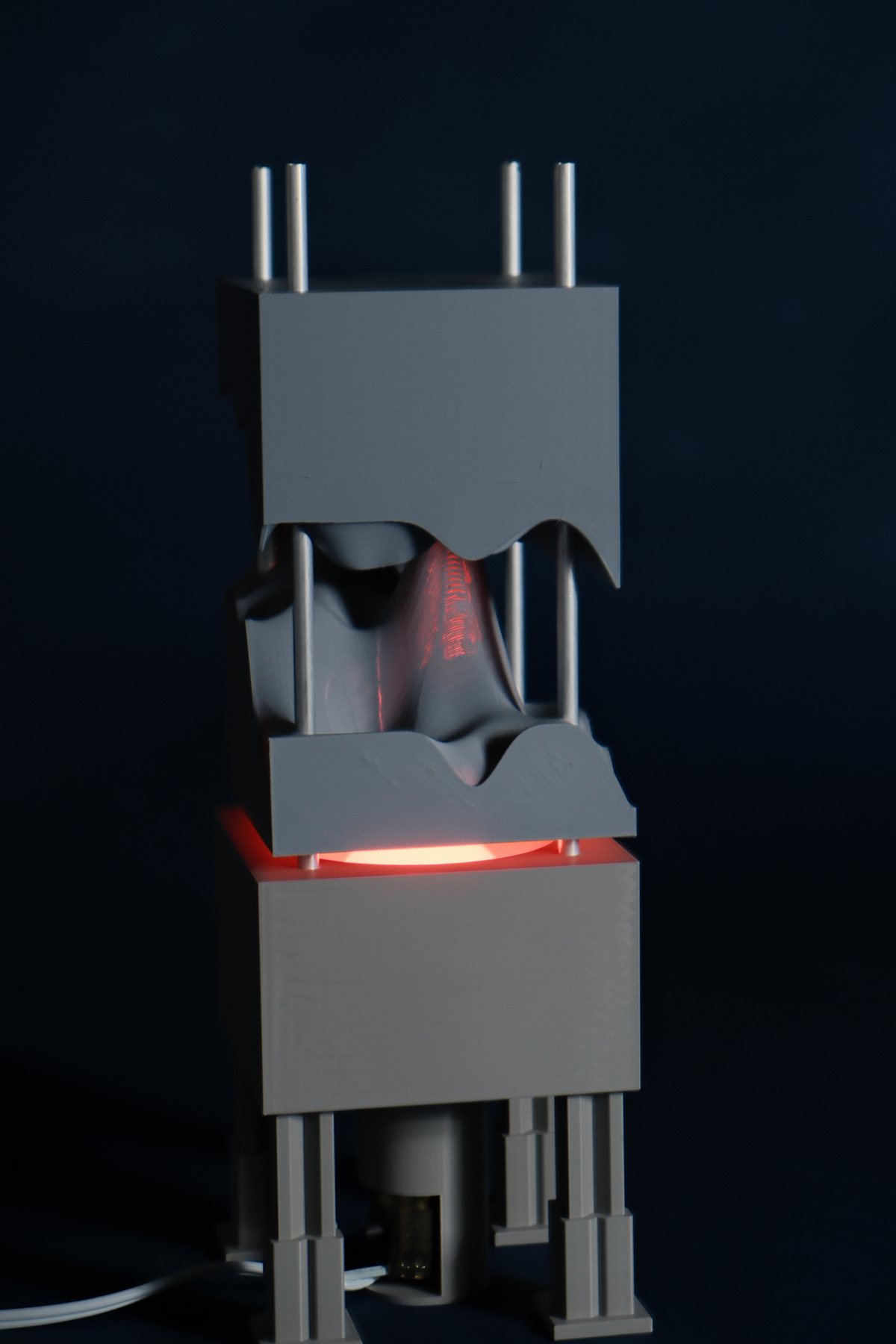

FIG 08 · OPEN LIGHT STATE
SEC 05
Designed for Disassembly可拆装结构
THE INDUSTRIAL FRAME IS ALSO THE ASSEMBLY SYSTEM
Disassembly was modeled into the object from the beginning.
The rods, base, enclosure, acrylic slices, and retention features can be separated and rebuilt. Integrating those joins during modeling makes pattern replacement possible while giving the finished lamp its deliberate industrial character.

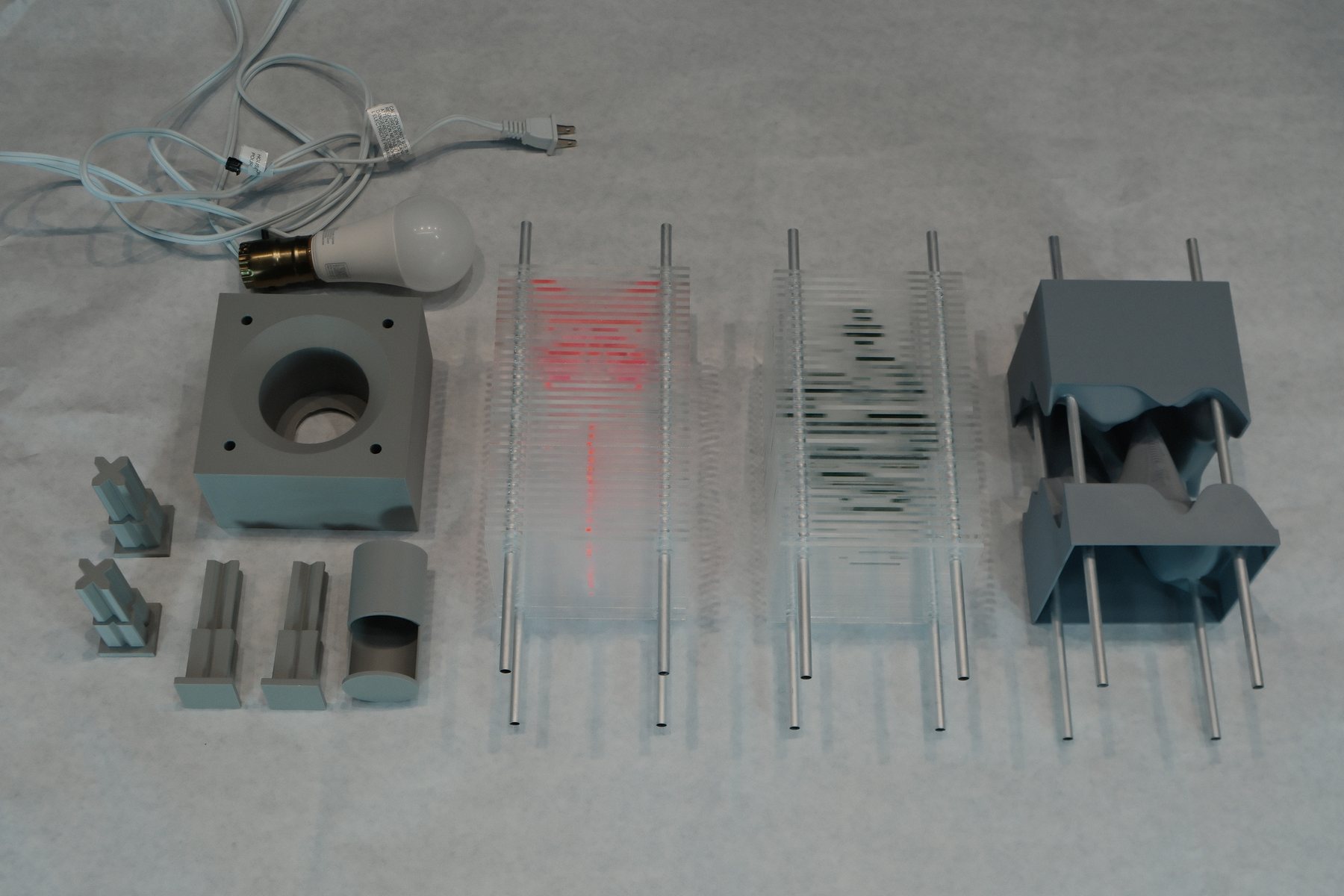

FIG 09 · DISASSEMBLED
